eCity / eTrekking

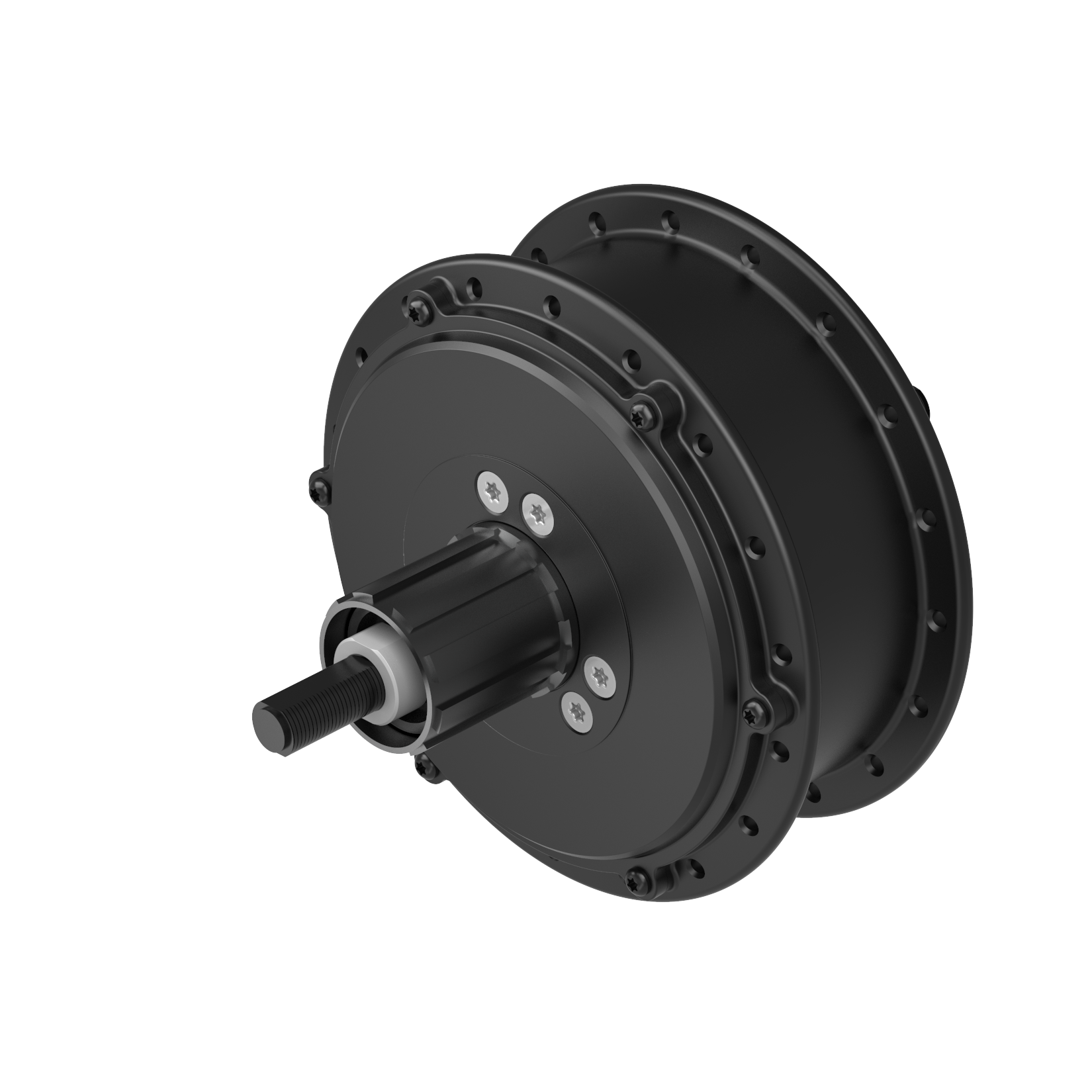

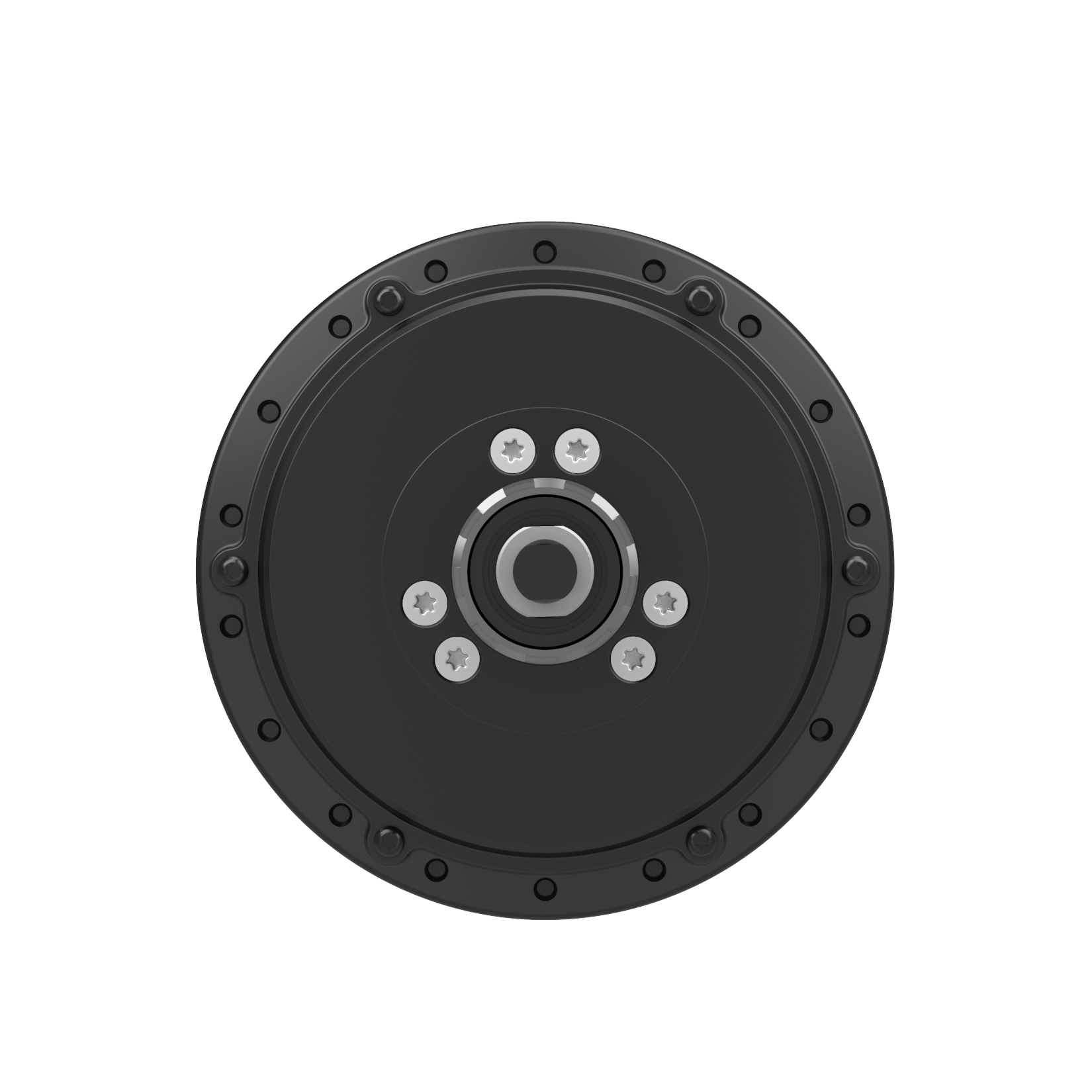

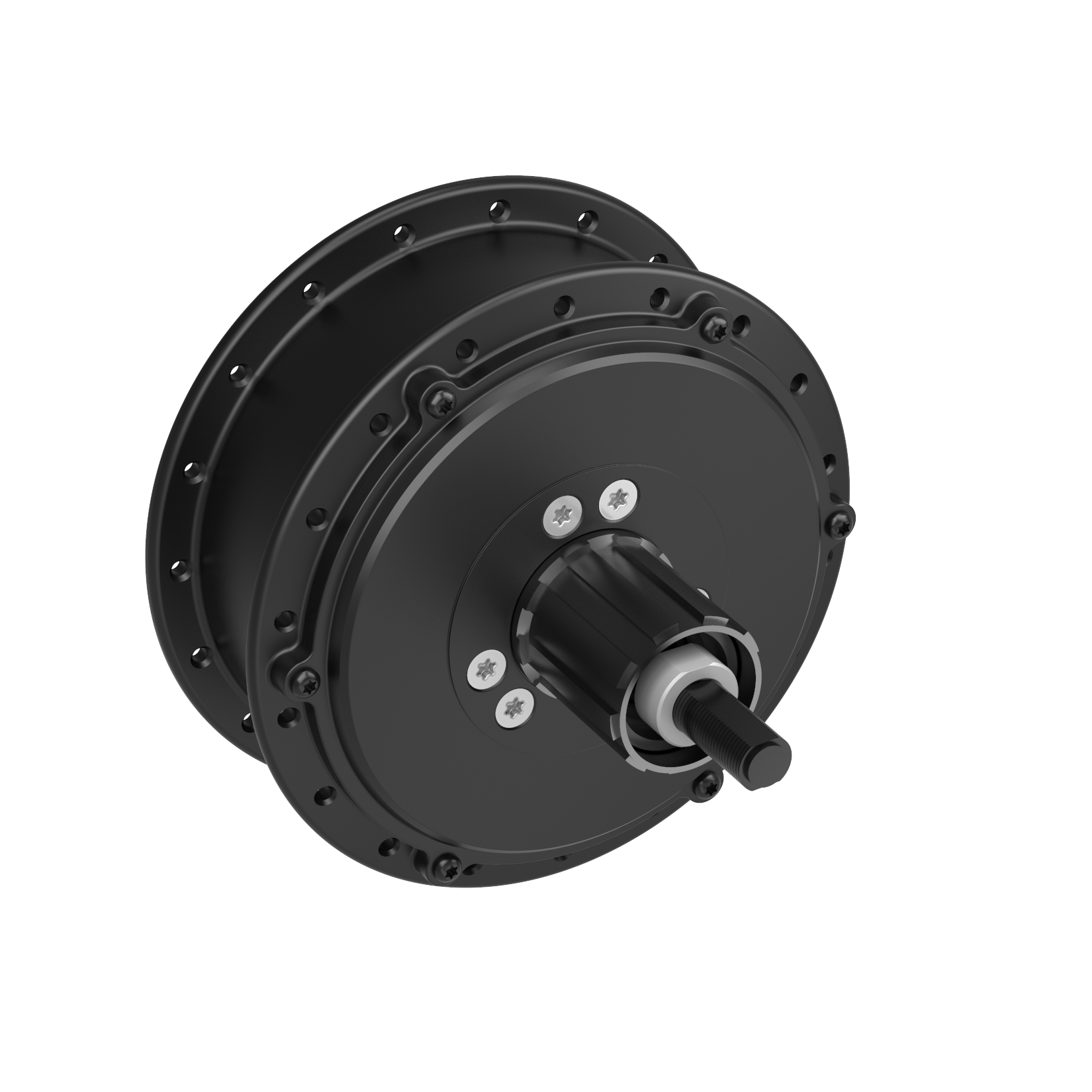

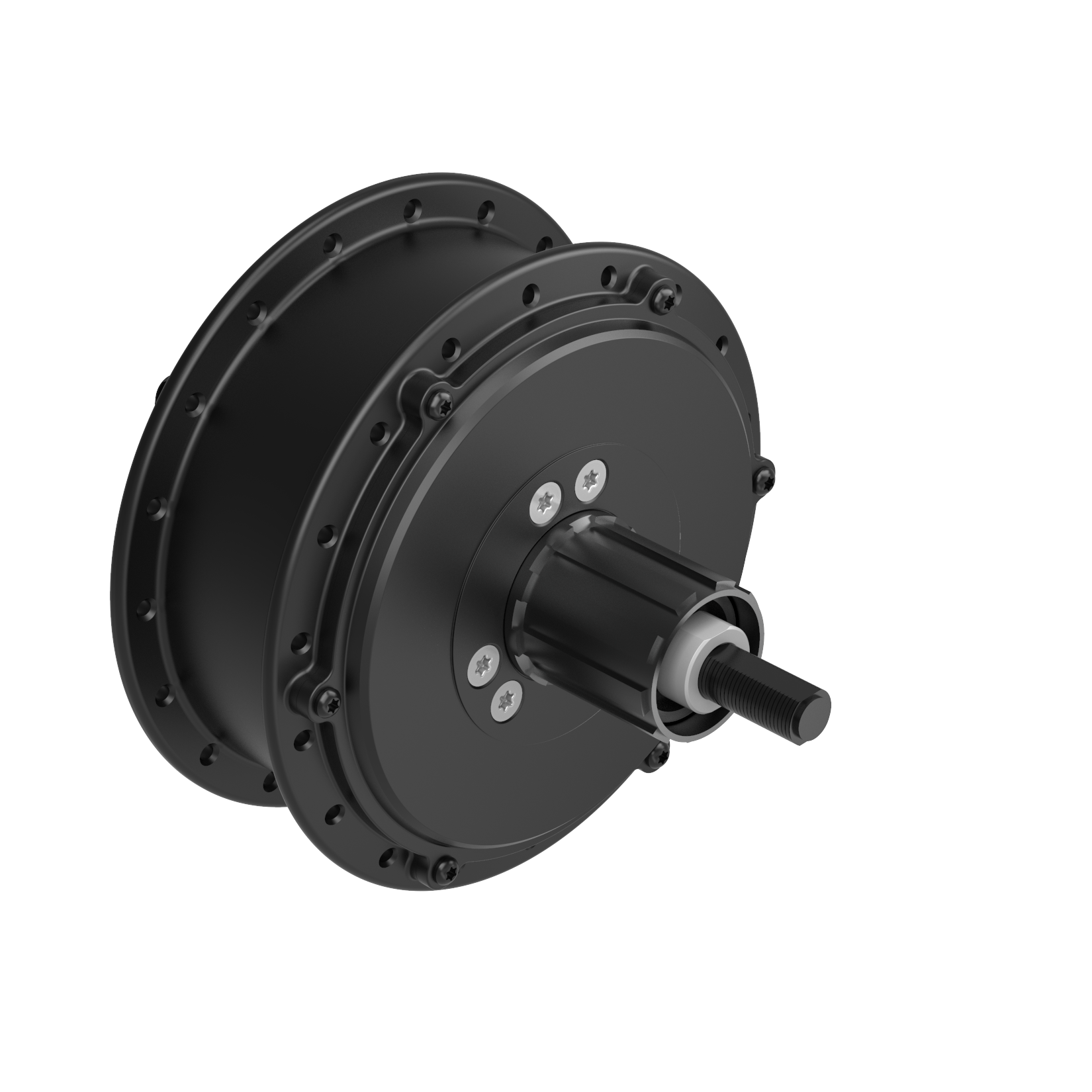

Motor M131CD

Ananda M131 is the ultimate companion for your eCity / eTrekking adventures. Weighing just 2.45kg, it's light yet powerful, offering unparalleled performance on every ride. Choose from motor options of 250W with 40Nm torque or 350W with 50Nm torque. With the option of a single-speed belt, enjoy seamless rides with minimal maintenance.

Parameter

Physical Features

Construction : Gear Drive

Weight : 2.5/2.6 Kg

Noise Grade : ≤55 dB

Performance & Technical

Rated Voltage : 36V / 48V DC

Rated Power : 250 / 350 W

Max Torque : 40 / 50 Nm

Key points

Powerful and affordable

7 speed screw / 10 speed cassette

Options

Available in 250W - 40Nm or 350W - 55Nm Available single speed belt 7 speed screw / 10 speed cassette option

Learn More Inquiry Now

What makes it unique !

Light, powerful, single speed belt option, good torque

Lightweight and Powerful

Weighing just 2.45kg, the M131 combines lightweight design with impressive power, ensuring unparalleled performance on every eCity / eTrekking adventure.

Versatile Motor Options

Choose between 250W with 40Nm torque or 350W with 55Nm torque, offering flexibility to match your need

Single-Speed Belt Option

Enjoy smooth, low-maintenance rides with the option of a single-speed belt, providing seamless performance for hassle-free adventures.

Construction Gear Drive
Weight (Kg) 2.5/2.6
Color Black / Silver
Noise Grade (dB) ≤55
Mounting Parameters
Brake Type Disc Brake / V Brake
Cable Routing Shaft side, Left
Spoke specification 36H*13G
Free wheel Cassette 10S
Rated Voltage (DC) 36V / 48V
Rated Power (W) 250 / 350
Max Torque (Nm) 40 / 50
Max efficiency ≥80%
Operation
Certifications
Waterproof IPX6
Cable Length (mm) 250
A: 44.5mm
B: 139.5mm
C: 126.5mm
D: M12x1mm
E: 15.2mm
F: 40.8mm
G: mm
O.L.D: 142

Comparison Motor

O.L.D
Construction
Rated Voltage (DC)
Rated Power (W)
Max Torque (Nm)
Max efficiency
Weight (Kg)
Color
Noise Grade (dB)
Operation
Mounting Parameters
Brake Type
Cable Routing
Cable Length (mm)
Spoke specification
Free wheel
Certifications
Waterproof

M131CD

eCity / eTrekking

142
Gear Drive
36V / 48V
250 / 350
40 / 50
≥80%
2.5/2.6
Black / Silver
≤55
Disc Brake / V Brake
Shaft side, Left
250
36H*13G
Cassette 10S
IPX6

M108VD

eCity

100
Gear Drive
36V
250
30
≥80%
2
Grey / Sliver
≤50
Disc Brake / V Brake
Through shaft,Left
250
36H*13G
/
IPX5
