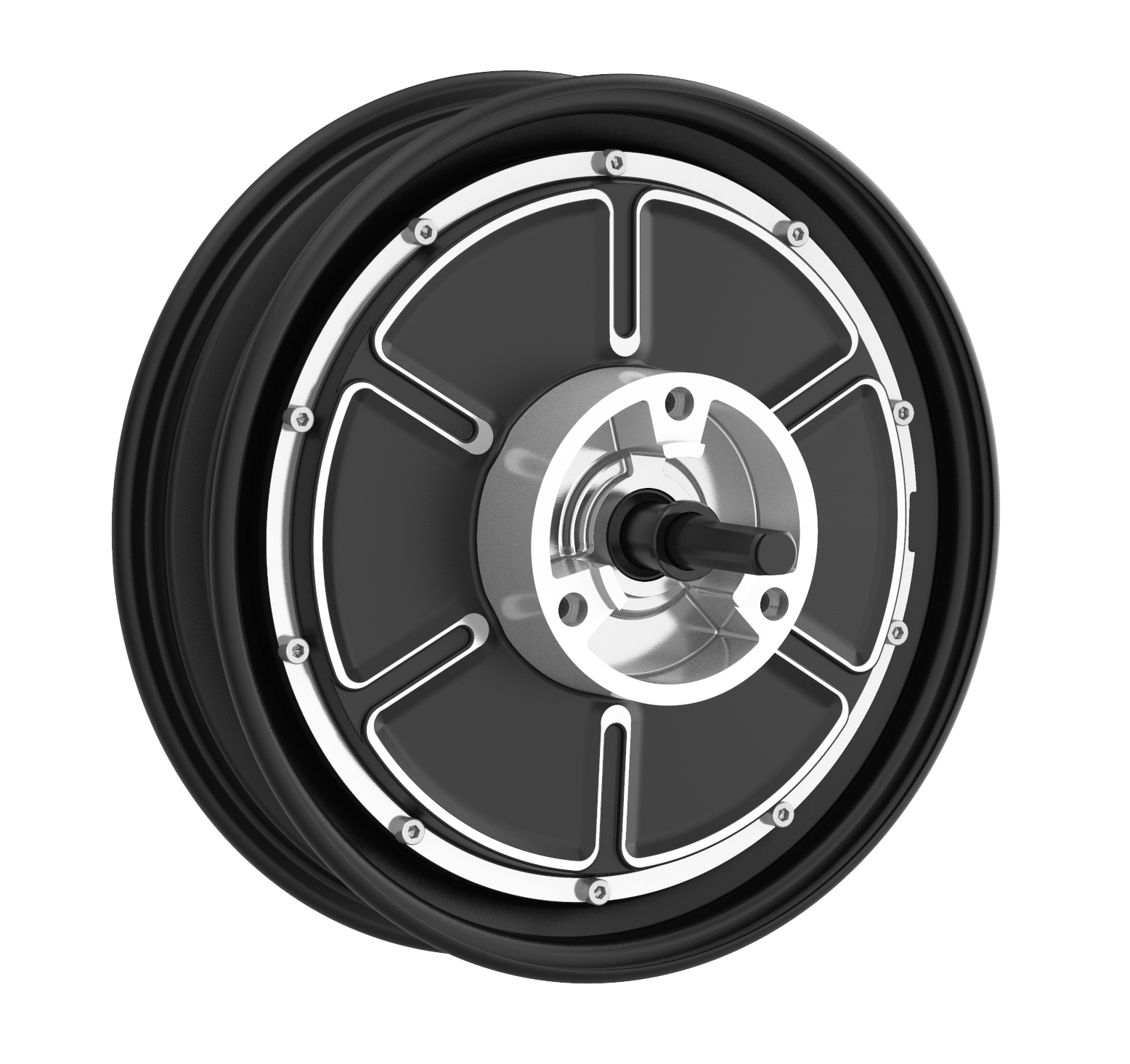

eMopped Hub Motor

Motor 10‘’ eMopped

Parameter

Performance & Technical

Rated Voltage : 48 DC

Rated Power : 400 W

Peak Power : 800 W

Maximum Running Speed : 32 km/h

Learn More Inquiry Now
Brake Type Disc brake
Rated Voltage (DC) 48
Rated Power (W) 400
Peak Power (W) 800
No-load Speed (rpm) 520-650
Rated Speed (rpm) 500-600
Peak torque (N.m) 55-85
Peak Efficiency (%) 82
Protection Level 54
Insulation Level B
Sensor Technology Hall
Maximum Running Speed (km/h) 32
Shaft drop out size (mm) 170
Tire size MT2.15-3.5

Comparison Motor

Rated Voltage (DC)
Rated Power (W)
Peak Power (W)
No-load Speed (rpm)
Rated Speed (rpm)
Peak torque (N.m)
Peak Efficiency (%)
Protection Level
Insulation Level
Sensor Technology
Brake Type
Maximum Running Speed (km/h)
Shaft drop out size (mm)
Tire size

10‘’ eMopped

eMopped Hub Motor

48
400
800
520-650
500-600
55-85
82
54
B
Hall
Disc brake
32
170
MT2.15-3.5

8”- H0045

eScooter Hub Motor

21-48
250-350
500-700
200-700
150-600
15-25
82
X5
B
Hall
Electronic brake
25
60-130
8×2.0

Motor eScooter System

Max. Speed (km/h):25-30
Discover
Motor 8”- H0045
Learn More
Rated Power 250-350 W
Peak torque 15-25 N.m

Inquiry Now

For more details about our engine, please leave your contact information. We will promptly call you back to address any inquiries you may have.
