eMTB

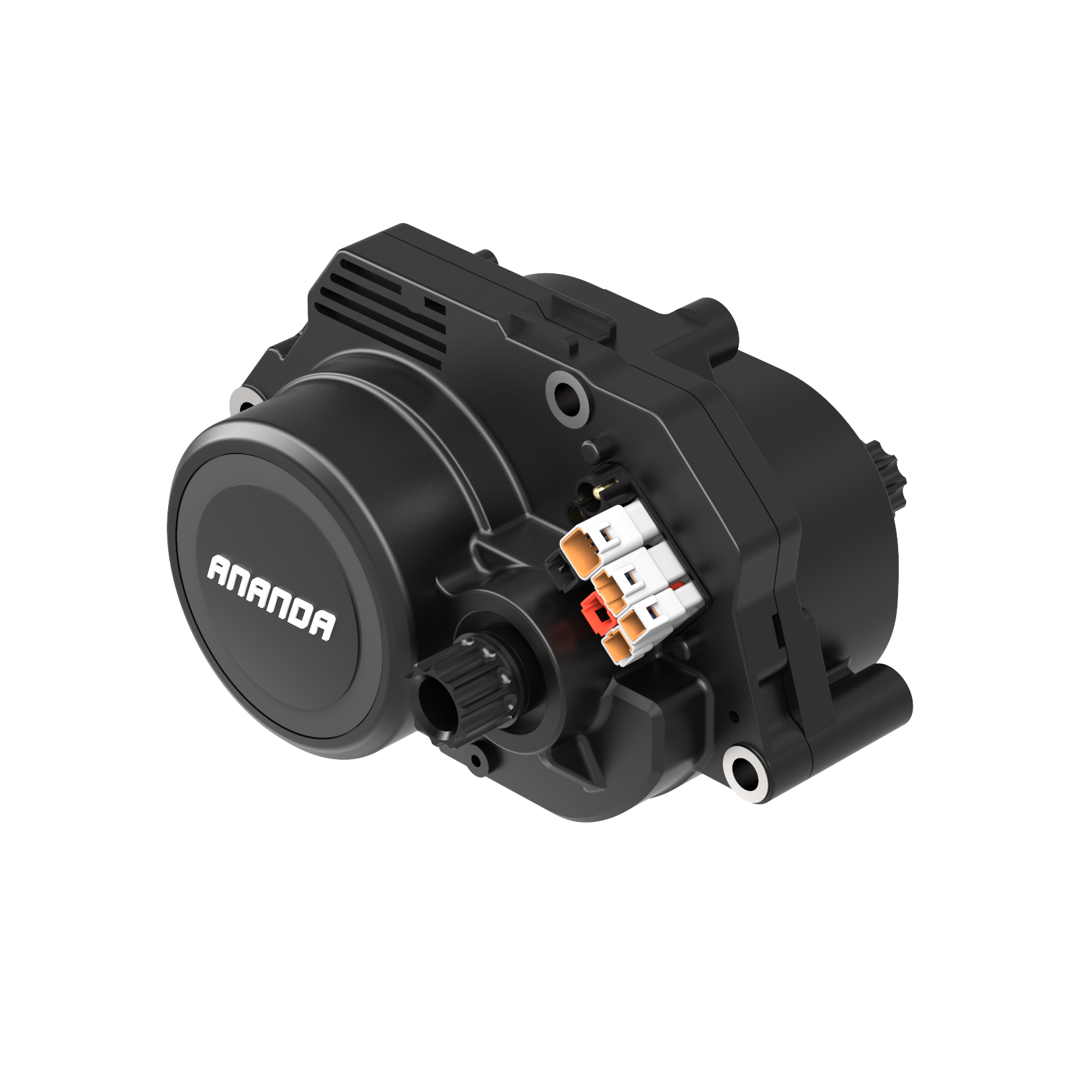

Motor M230

Ananda M230 is our lightweight and compact motor designed for modern Emtb riding, offering a balanced blend of performance and agility. With a powerful 85Nm of torque, this motor is ready to tackle challenging climbs with ease. The high-precision torque sensor ensures a smooth and natural riding experience, adapting seamlessly to varying terrains.

Parameter

Physical Features

Weight : 2.8 Kg

Construction : Gear Drive

Shaft Standard : ISIS

Performance & Technical

Rated Power : 250/350 W

RPM : 110/120

Max Torque : 80/100 Nm

Max efficiency : ≥80%

Key points

Compact and light weight

High precision torque sensor

Throttle option

Options

Available in 250W - 85Nm - 2,65kg or 350W - 100Nm - 2,8kg ISIS axle  only

Learn More Inquiry Now

What makes it unique !

Powerful torque, high-precision sensor, smooth riding experience,  compact yet versatile design, perfect for modern and sporty Emtb riders,

Unmatched Climbing Power with Lightweight Design

Experience confident climbs and technical trails with the lightweight and compact motor delivering 80Nm of torque. Its balanced performance ensures reliable support without overwhelming the rider, making every ascent more manageable.

Compact Design, Versatile Performance

At just 2.8 kg (250W), the compact motor offers enhanced compact design without compromising on power. Its lightweight design ensures agile handling, making it well-suited for navigating diverse Emtb trails and terrains.

High-Precision Torque Sensor

Enjoy a responsive and intuitive riding experience thanks to the high-precision torque sensor. The motor effortlessly adjusts to the terrain, providing a smooth and natural feel to your pedal strokes, enhancing control and confidence.

Parameter

Weight (Kg) 2.8
Construction Gear Drive
Shaft Standard ISIS
Color Black
Rated Voltage (DC) 36V/48V
Rated Power (W) 250/350
RPM 110/120
Max Torque (Nm) 80/100
Max efficiency ≥80%
Coaster Brake /
e-Brake
Gear Sensor Option
Light Drive Capacity 6V3W/12V6W
Sensor Integrated Torque & Cadence Sensor
Certifications CE/EN15194/RoHS/REACHL
A: 182.3mm
B: 121.2mm
C: 48.7mm
D: 150mm

Comparison Motor

Weight (Kg)
Construction
Rated Voltage (DC)
Rated Power (W)
RPM
Max Torque (Nm)
Max efficiency
Sensor
Coaster Brake
Shaft Standard
Color
Operation Temperature (°C)
e-Brake
Gear Sensor
Light Drive Capacity
Certifications
Tests
Usage

M230

eMTB

2.8
Gear Drive
36V/48V
250/350
110/120
80/100
≥80%
Integrated Torque & Cadence Sensor
/
ISIS
Black
Option
6V3W/12V6W
CE/EN15194/RoHS/REACHL

M100

eMTB / eCargo

3.5/3.9
Gear Drive
36V/48V/52V
250/350/500
110/120/135
110/120/130
≥80%
Integrated Torque & Cadence Sensor
/
JIS/ISIS
Black
Option
6V3W/12V6W/12V24W/24V24W
CE/EN15194/RoHS/REACH/UKCA/UL

HMI eBike System

Discover
HMI D18
Learn More
Systems eMTB
Display Technology TFT
Screen Size 25.5*15.5(1.14) Inch
