Products
Weight : 3 Kg
Construction : Gear Drive
Shaft Standard : JIS
Rated Power : 250 W
RPM : 105
Max Torque : 80 N.m
Max efficiency : ≥80%
Lightweight Design
High Efficiency and Low Noise
Compliance with Regulations
Throttle option

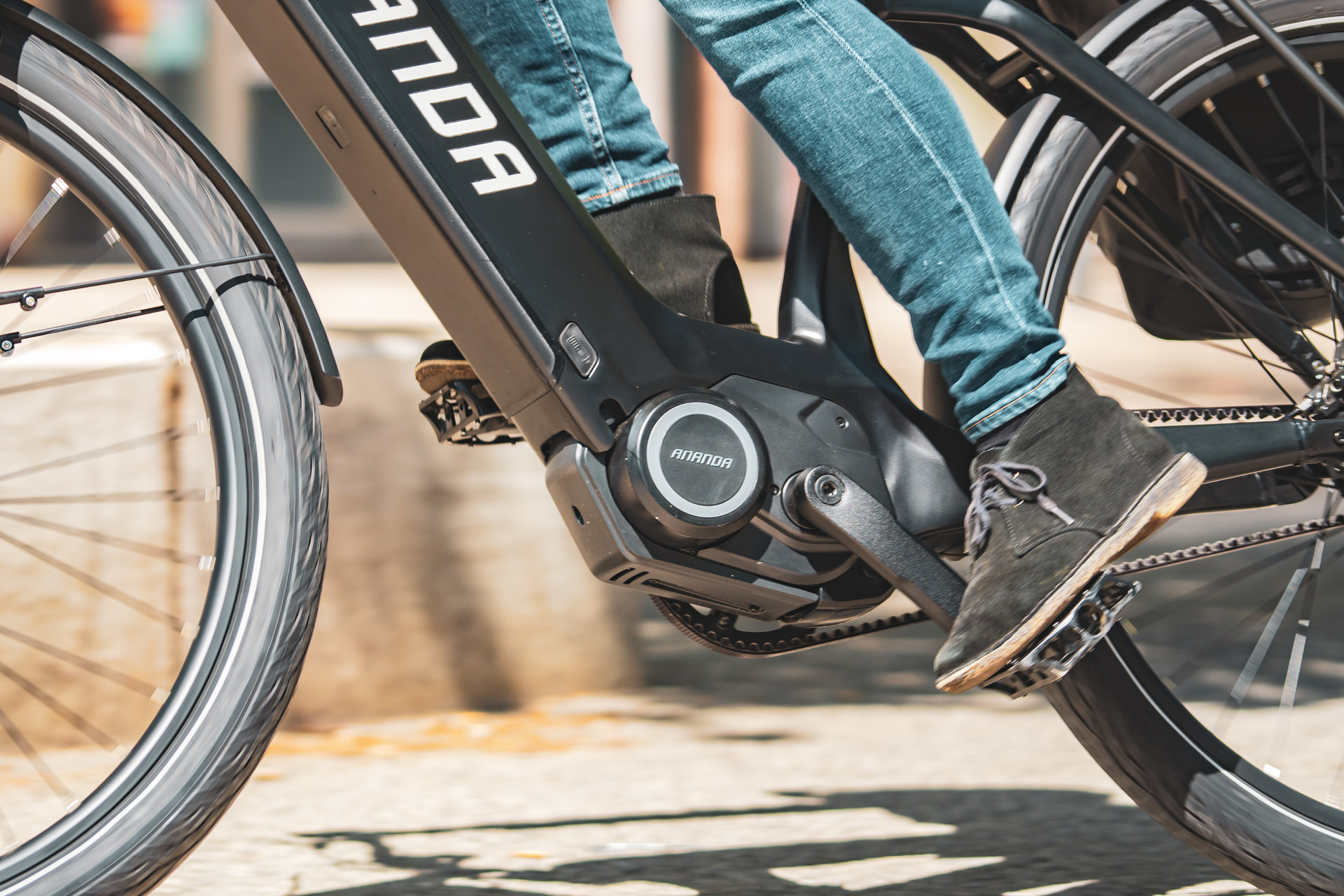

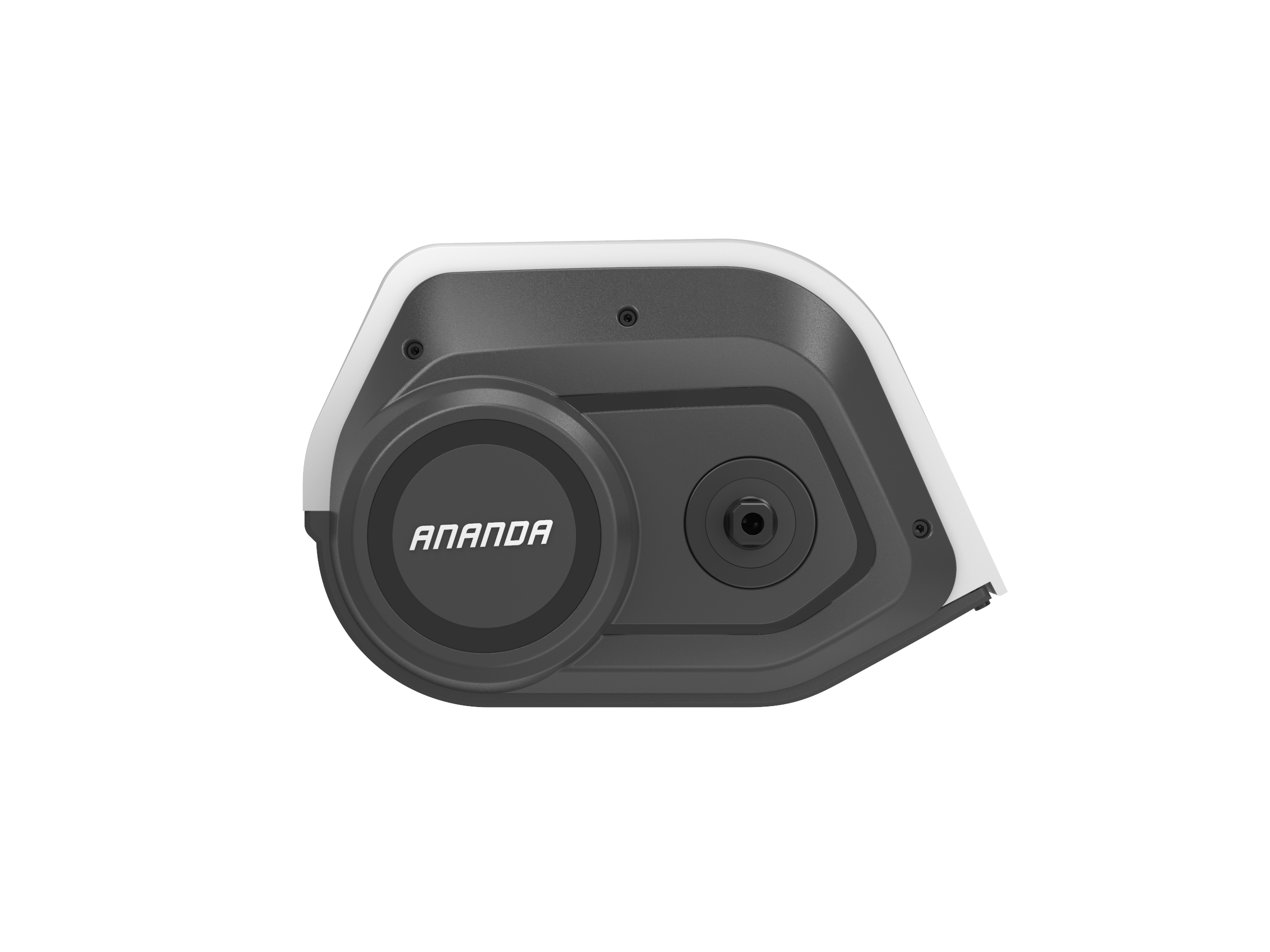

Designed specifically for the urban bike market in Japan, the M1000 mid-drive motor exhibits a range of features that are tailored to meet the demands of urban riding environments and satisfy the needs of Japanese consumers.
Its carefully crafted lightweight structure effectively reduces the overall vehicle weight, making it lighter and more agile, perfectly suited for navigating through busy and variable urban road conditions.
This motor provides robust power output while maintaining extremely low noise levels, creating a serene and comfortable riding environment for riders, turning cycling into a pleasure.
The motor's efficient thermal design ensures stable operating temperatures even during intense or extended rides, preventing performance degradation or damage due to overheating.
| Weight (Kg) | 3 |
| Construction | Gear Drive |
| Shaft Standard | JIS |
| Color | Black |
| Rated Voltage (DC) | 24V/36V |
| Rated Power (W) | 250 |
| RPM | 105 |
| Max Torque (N.m) | 80 |
| Max efficiency | ≥80% |
| Coaster Brake | / |
| e-Brake | Yes |
| Gear Sensor | Option |
| Light Drive Capacity | 6V3W/12V6W |
| Sensor | Integrated Torque & Cadence Sensor |
| Certifications | Being processed |
| A: 200mm |
| B: 135.2mm |
| C: 49mm |
| D: 155mm |
| Weight (Kg) |
| Construction |
| Rated Voltage (DC) |
| Rated Power (W) |
| RPM |
| Max Torque (N.m) |
| Max efficiency |
| Sensor |
| Coaster Brake |
| Shaft Standard |
| Color |
| e-Brake |
| Gear Sensor |
| Light Drive Capacity |
| Certifications |
M1000
eTrekking
| 3 |
| Gear Drive |
| 24V/36V |
| 250 |
| 105 |
| 80 |
| ≥80% |
| Integrated Torque & Cadence Sensor |
| / |
| JIS |
| Black |
| Yes |
| Option |
| 6V3W/12V6W |
| Being processed |
M100
eMTB / eCargo
| 3.5/3.9 |
| Gear Drive |
| 36V/48V/52V |
| 250/350/500 |
| 110/120/135 |
| 110/120/130 |
| ≥80% |
| Integrated Torque & Cadence Sensor |
| / |
| JIS/ISIS |
| Black |
| ● |
| Option |
| 6V3W/12V6W/12V24W/24V24W |
| CE/EN15194/RoHS/REACH/UKCA/UL |
