Mid Motor System

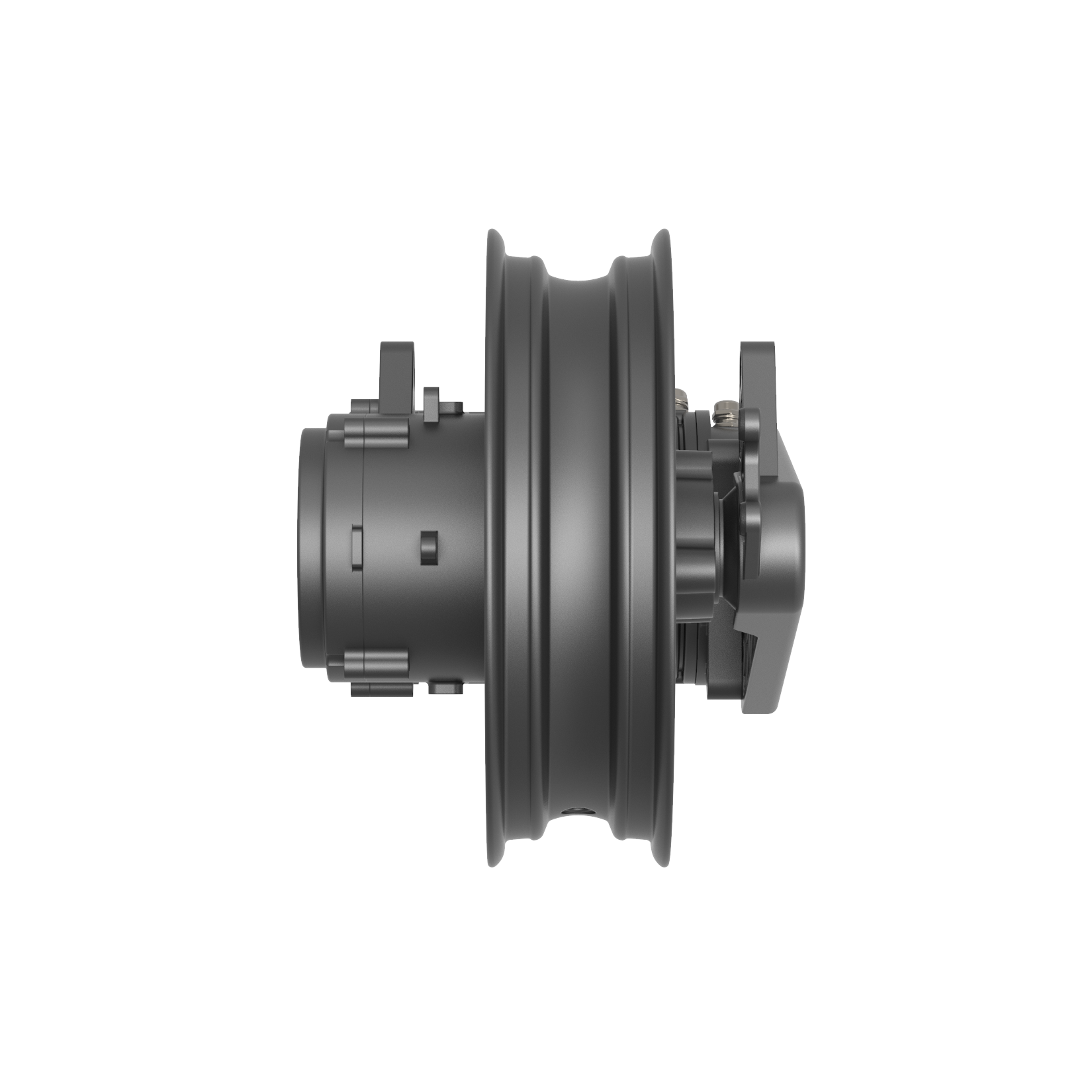

Motor C0400

Motor, gearbox, flat fork, highly integrated three in one motor. Motor Design: Single axle Matched Wheel: 12inch Wheel (as default) Magnet Height: 70mm, 40pcs, 5 pole pairs Diameter of stator: 138mm Rated Power: 4000W (peak power, pending) Rated Voltage: 72V as default Speed: 120KPH No-load rpm: 4500rpm without flux weakening, 6500RPM with flux weakening. Max Torque: approx 55N.m (without Reduction ratio)

Parameter

Performance & Technical

Rated Voltage : 72-96 DC

Rated Power : 2000-5000 W

Peak Power : 4000-10000 W

Dimensions

Tire size : MT3.0-12

Key points

High performance motor

Belt/Chain+Gear option

Matching hub: MT3.0-12

Options

Available in 4000W - 210Nm or 5000W - 240Nm

Learn More Inquiry Now

What makes it unique !

Focus on enhanced riding comfort, compact design, safety features, powerful performance.

High torque and good heat dissipation.

Enjoy a responsive and intuitive riding experience thanks to the high torque. The motor effortlessly adjusts to the terrain, providing a smooth and natural feel to your e-motorcycle, enhancing control and confidence.

Optimal Power for Urban Travel

Available in 4000W - 210Nm or 5000W - 240Nm

Robust Performance, Smooth Operation

The central motor can effectively reduce the unsprung mass, improve the overall handling of the vehicle, and the peak speed can lead the hub motor by multiple times, demonstrating performance strength.

Brake Type Disc Brake
Rated Voltage (DC) 72-96
Rated Power (W) 2000-5000
Peak Power (W) 4000-10000
No-load Speed (rpm) 4000-8000
Rated Speed (rpm) 3500
Peak torque (N.m) 45-60
Peak Efficiency (%) ≥90%
Protection Level 67
Insulation Level H
Sensor Technology magnetic encoder
Maximum Running Speed (km/h) 80-120
Shaft drop out size (mm) 210
Tire size MT3.0-12

Comparison Motor

Rated Voltage (DC)
Rated Power (W)
Peak torque (N.m)
No-load Speed (rpm)
Rated Speed (rpm)
Peak Efficiency (%)
Protection Level
Insulation Level
Sensor Technology
Brake Type
Maximum Running Speed (km/h)
Shaft drop out size (mm)
Tire size
blank

C0400

Mid Motor System

72-96
2000-5000
45-60
4000-8000
3500
≥90%
67
H
magnetic encoder
Disc Brake
80-120
210
MT3.0-12
blank

C0200

Mid Motor System

60-96
2000-3000
35-50
3000-5000
3000
≥90%
67
H
magnetic encoder
Disc Brake
60-80
205
MT2.5-12
blank

Controller

Discover
blank
Controller MC7300
Learn More blank
Rated Voltage 72V DC
Communication CAN

Inquiry Now

For more details about our engine, please leave your contact information. We will promptly call you back to address any inquiries you may have.
