eTrekking

Motor M4000

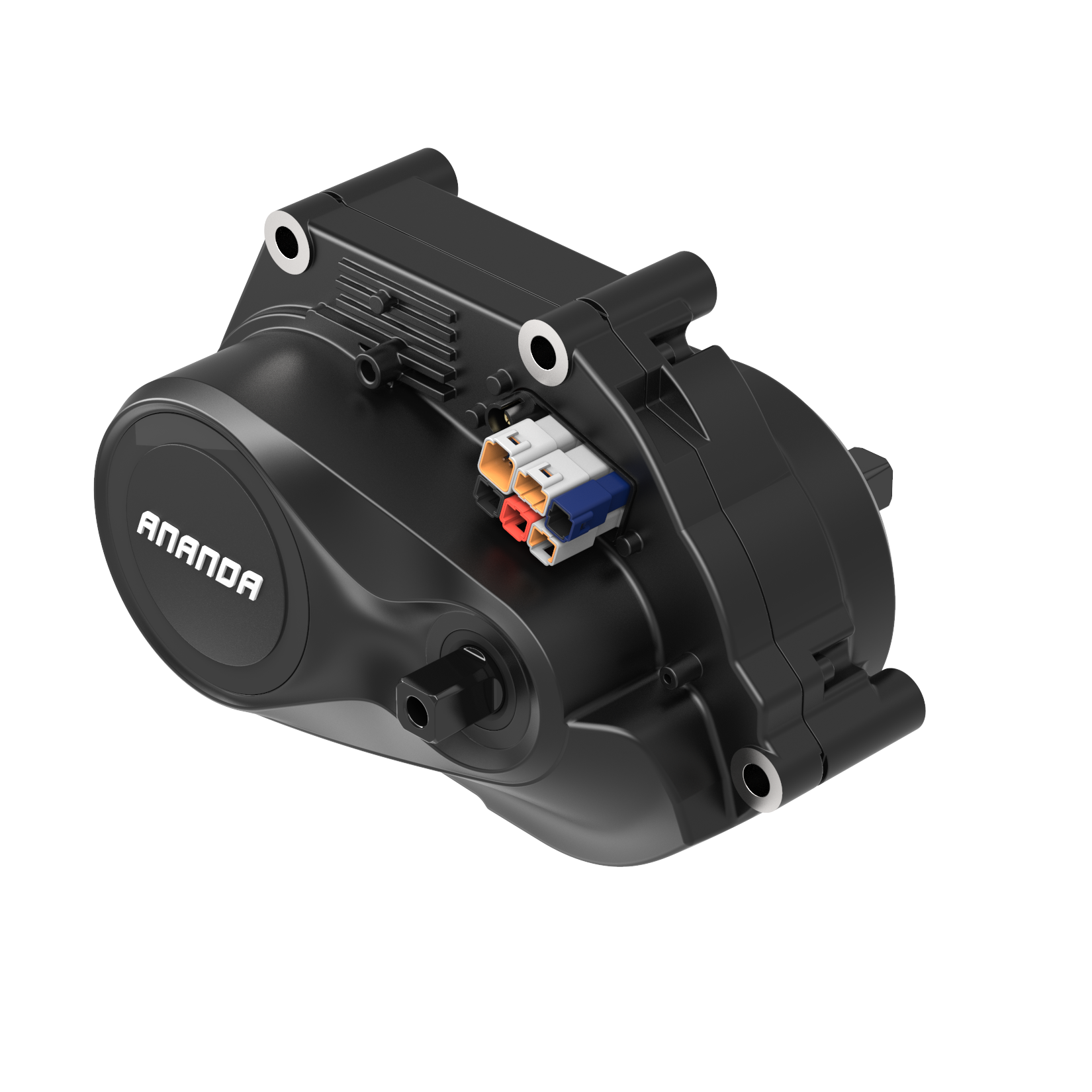

The Ananda M4000 series offers a lightweight, high-performance ebike system designed to excel in a variety of rides, from trekking to light off-road conditions. Its new structural design and precision torque sensor provide riders with a smoother pedaling experience and increased comfort, complemented by zero resistance for the axle.

Parameter

Physical Features

Weight : 3.3 Kg

Construction : Gear Drive

Shaft Standard : JIS

Performance & Technical

Rated Power : 250 W

RPM : 105

Max Torque : 80 Nm

Max efficiency : ≥80%

Key points

Design style for perfect integration

Zero resistance for axle

Turn lights function option

Throttle option

Options

Available in 250W - 80Nm or 350W - 100Nm JIS and ISIS axle versions

Learn More Inquiry Now

What makes it unique !

Focus on enhanced riding comfort, compact design, safety features, powerful performance.

Enhanced Pedaling Efficiency for comfortable Riding

Enjoy improved pedaling efficiency and comfort with the Ananda M4000 series. The precision torque sensor and updated structural design ensure a smooth ride, perfect for trekking or light off-road adventures.

Compact Design, Easy Handling

Designed in a sleek and lightweight style, the M4000 series offers exceptional handling without compromising durability. Weighing just 3.35 kg, it provides effortless control and maneuverability for a more enjoyable ride.

Safety and Convenience Features

Stay safe and visible with the M4000 series' turn light function.

Parameter

Weight (Kg) 3.3
Construction Gear Drive
Shaft Standard JIS
Color Black
Rated Voltage (DC) 36V
Rated Power (W) 250
RPM 105
Max Torque (Nm) 80
Max efficiency ≥80%
Coaster Brake /
e-Brake
Gear Sensor Option
Light Drive Capacity 6V3W
Sensor Integrated Torque & Cadence Sensor
Certifications Being processed
A: 197.5mm
B: 133.5mm
C: 49mm
D: 155mm

Comparison Motor

Weight (Kg)
Construction
Rated Voltage (DC)
Rated Power (W)
RPM
Max Torque (Nm)
Max efficiency
Sensor
Coaster Brake
Shaft Standard
Color
Operation Temperature (°C)
e-Brake
Gear Sensor
Light Drive Capacity
Certifications
Tests
Usage

M4000

eTrekking

3.3
Gear Drive
36V
250
105
80
≥80%
Integrated Torque & Cadence Sensor
/
JIS
Black
Option
6V3W
Being processed

M100

eMTB / eCargo

3.5/3.9
Gear Drive
36V/48V/52V
250/350/500
110/120/135
110/120/130
≥80%
Integrated Torque & Cadence Sensor
/
JIS/ISIS
Black
Option
6V3W/12V6W/12V24W/24V24W
CE/EN15194/RoHS/REACH/UKCA/UL

HMI eBike System

Discover
HMI D16
Learn More
Systems eCity
Display Technology TFT
Screen Size 82*53(3.8) Inch

Inquiry Now

For more details about our engine, please leave your contact information. We will promptly call you back to address any inquiries you may have.
