eTrekking

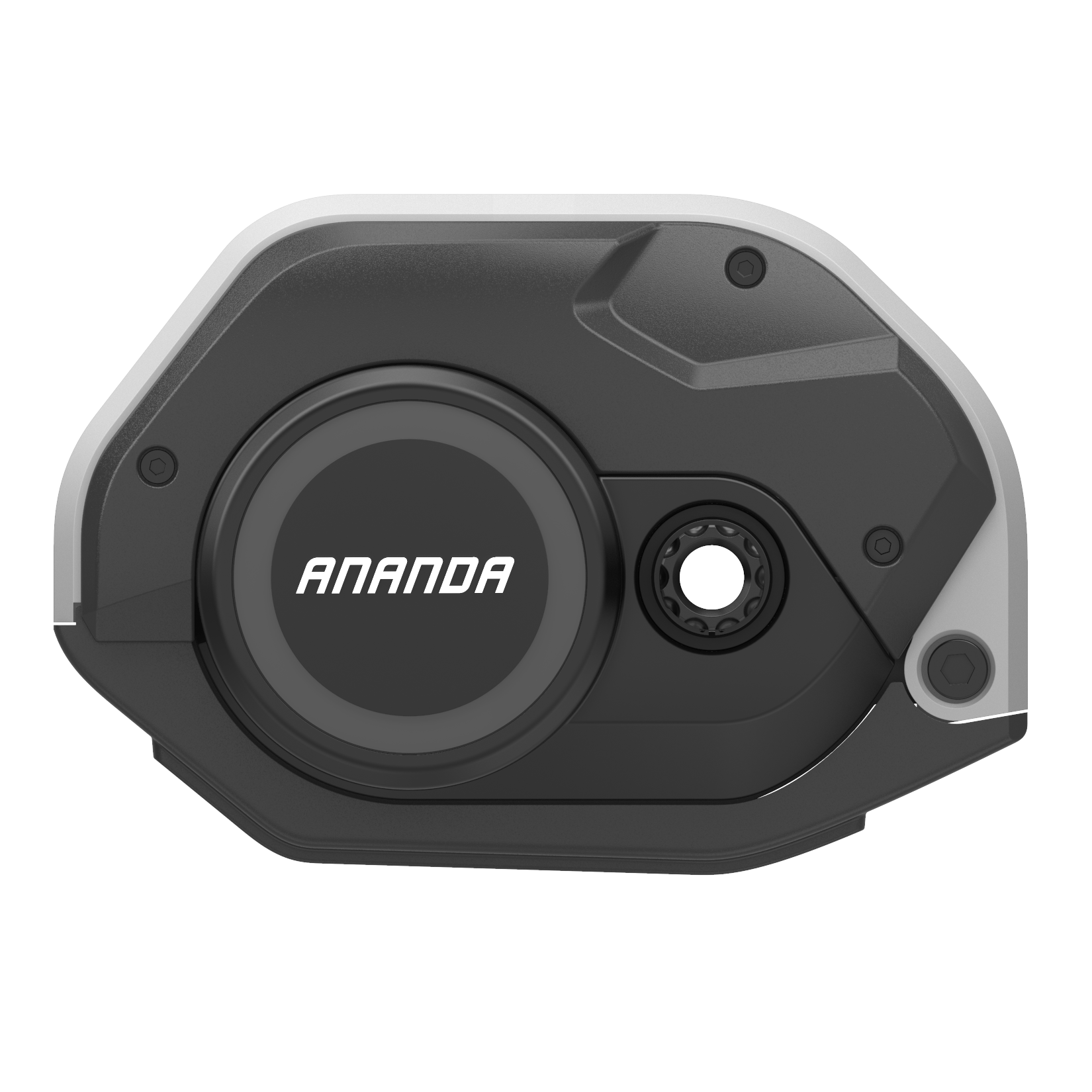

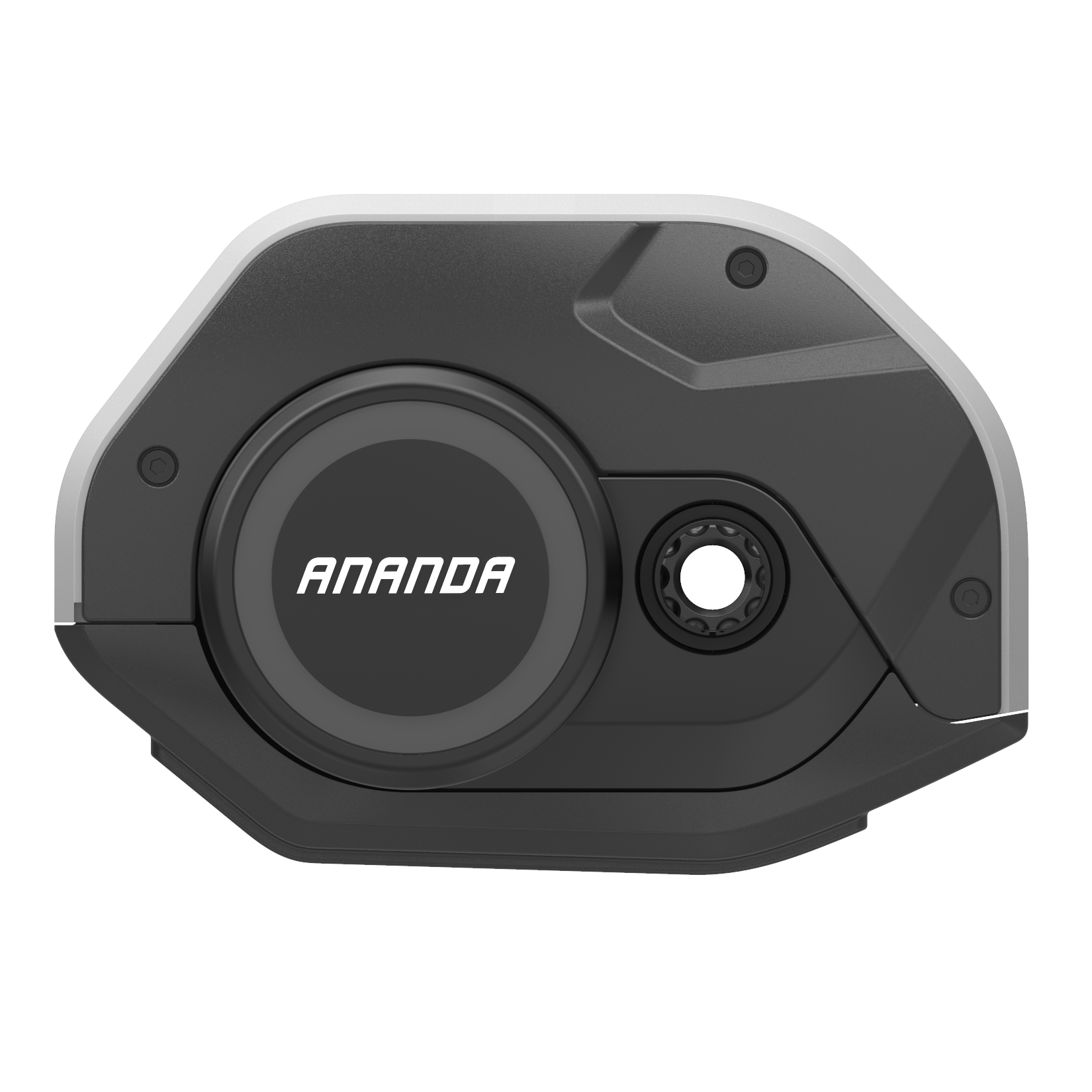

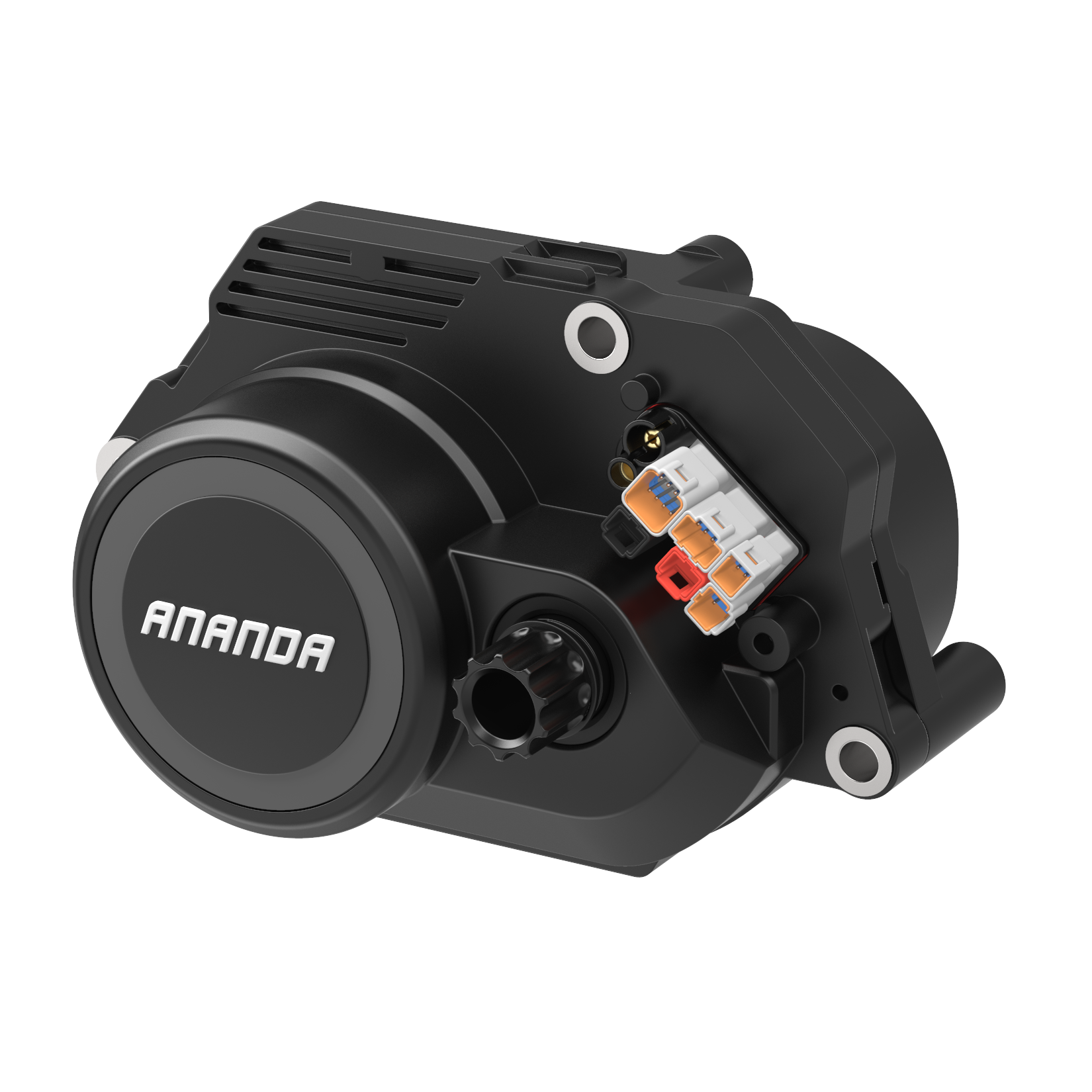

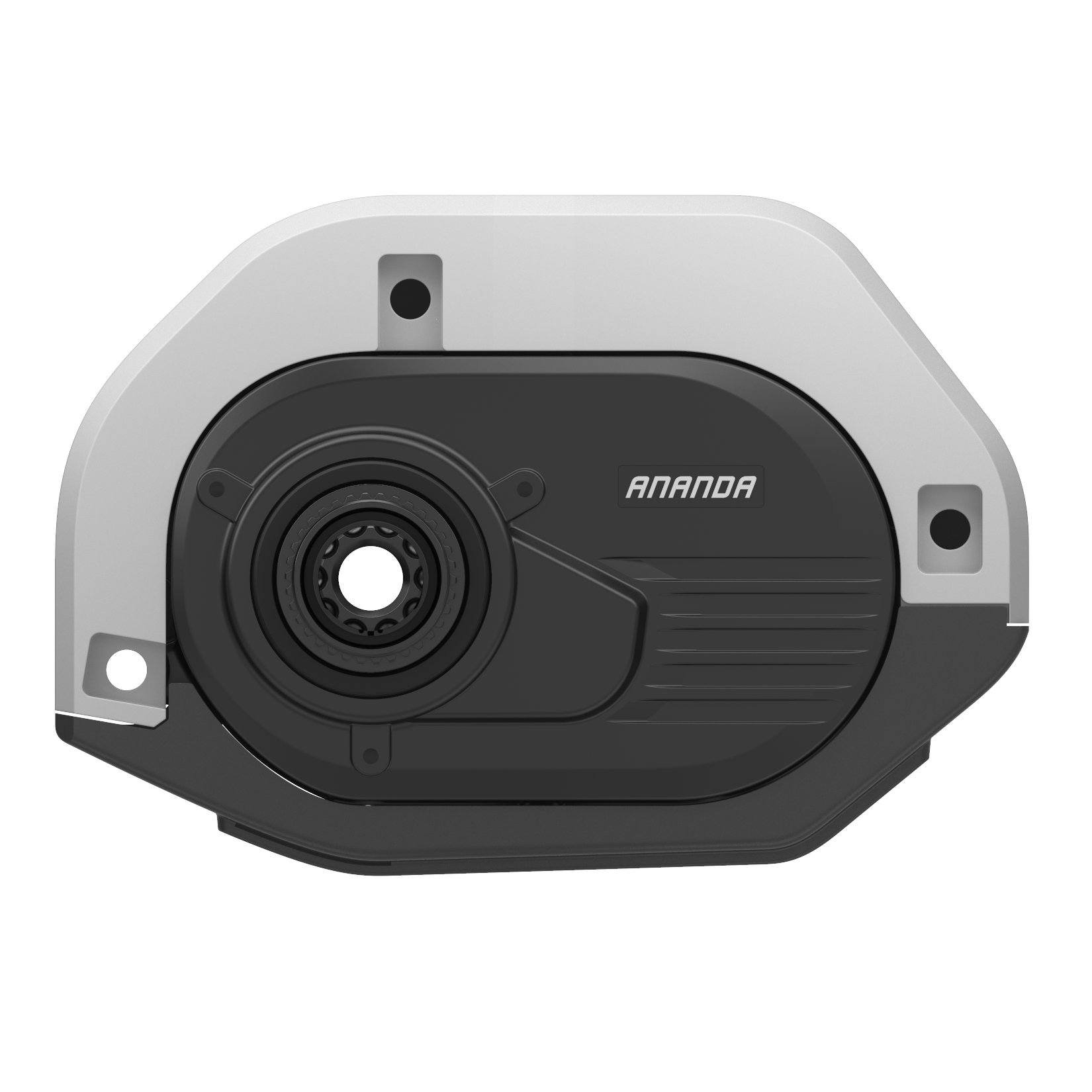

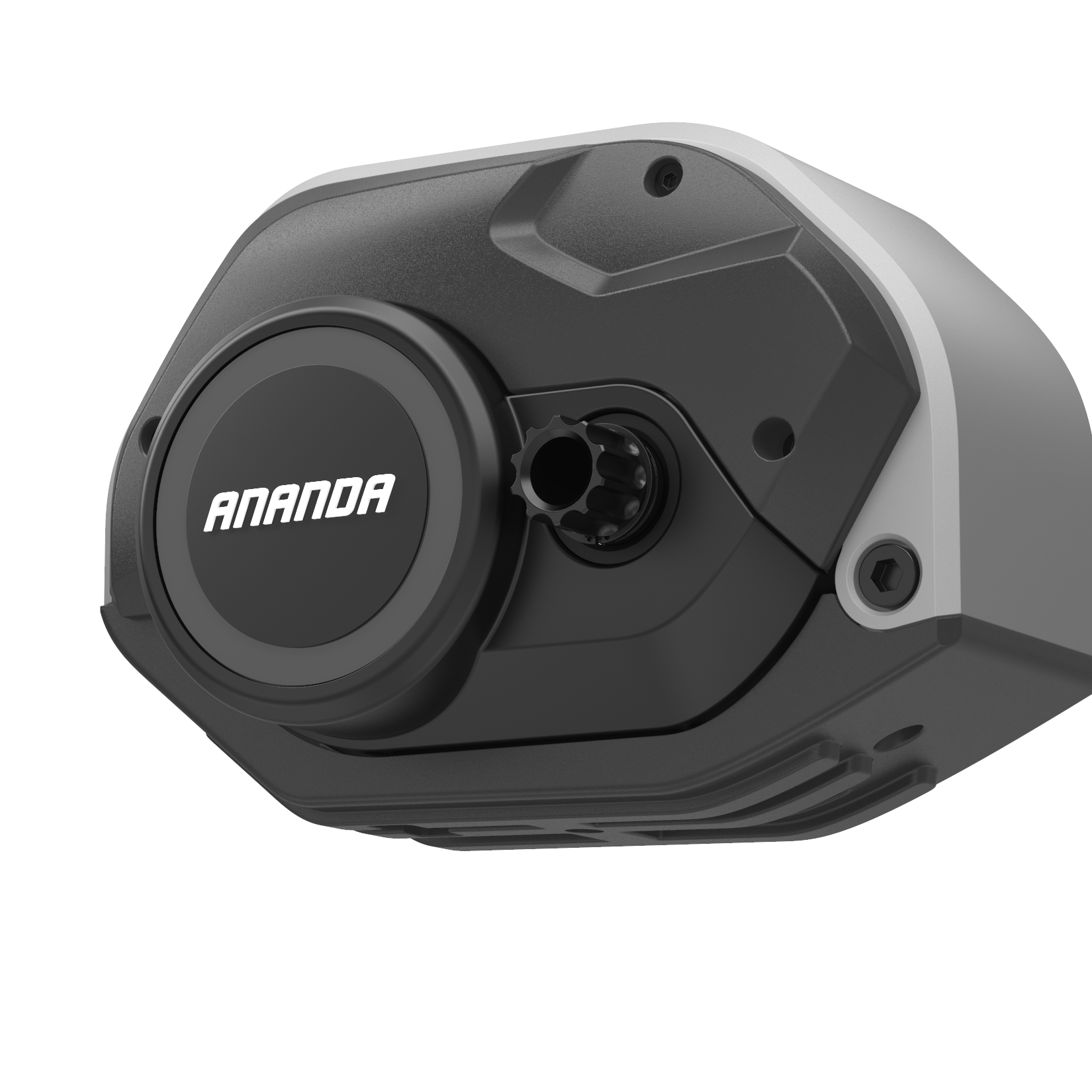

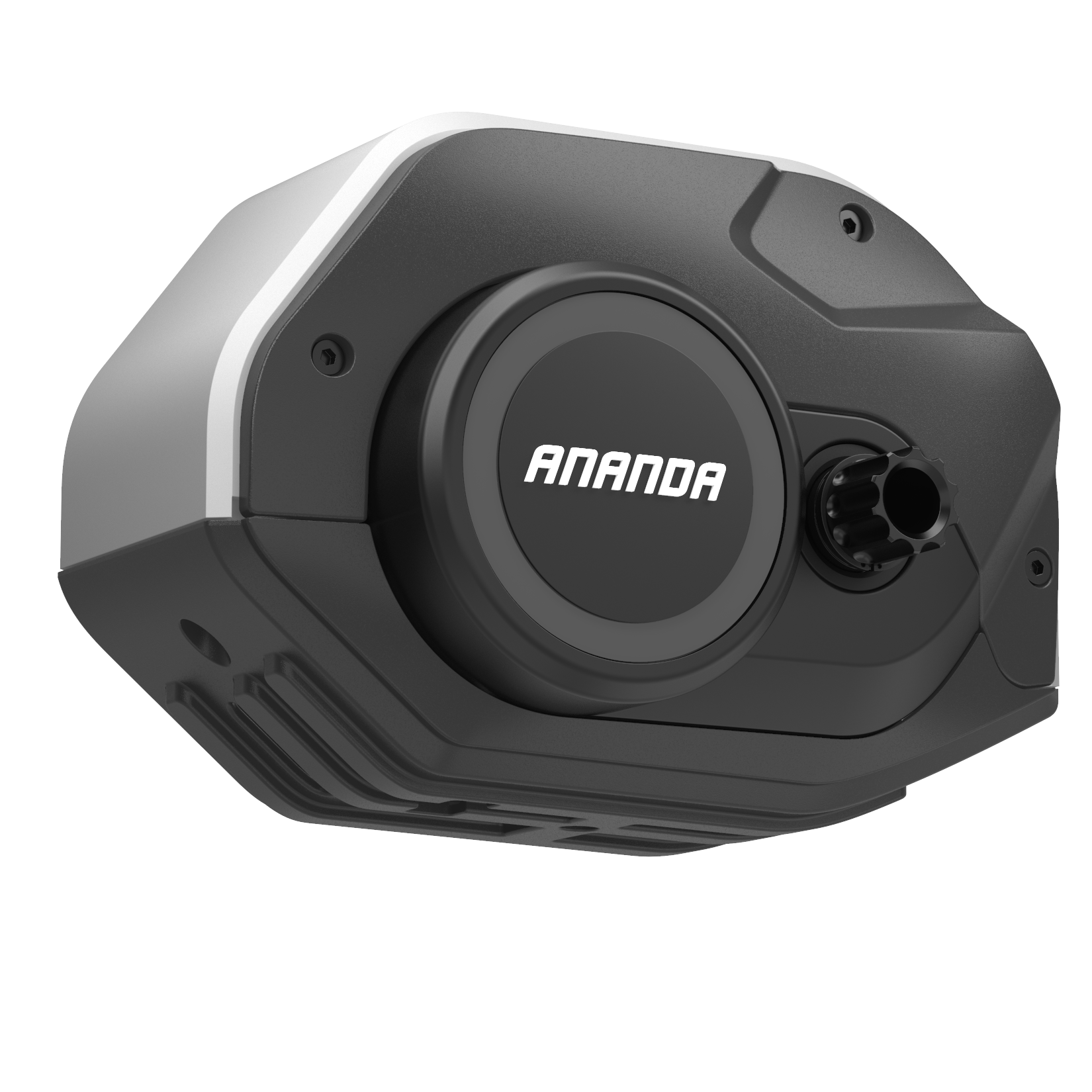

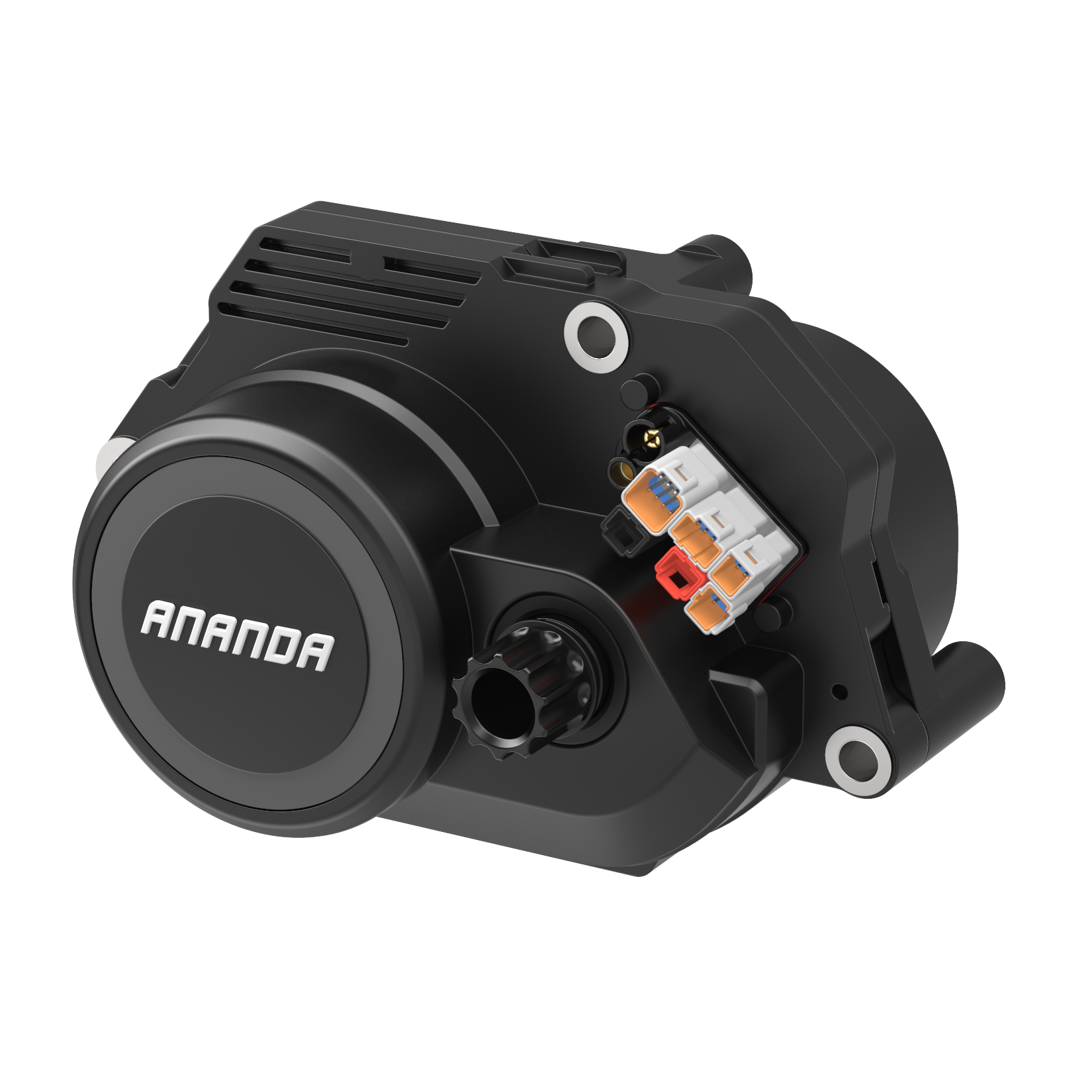

Motor M5000

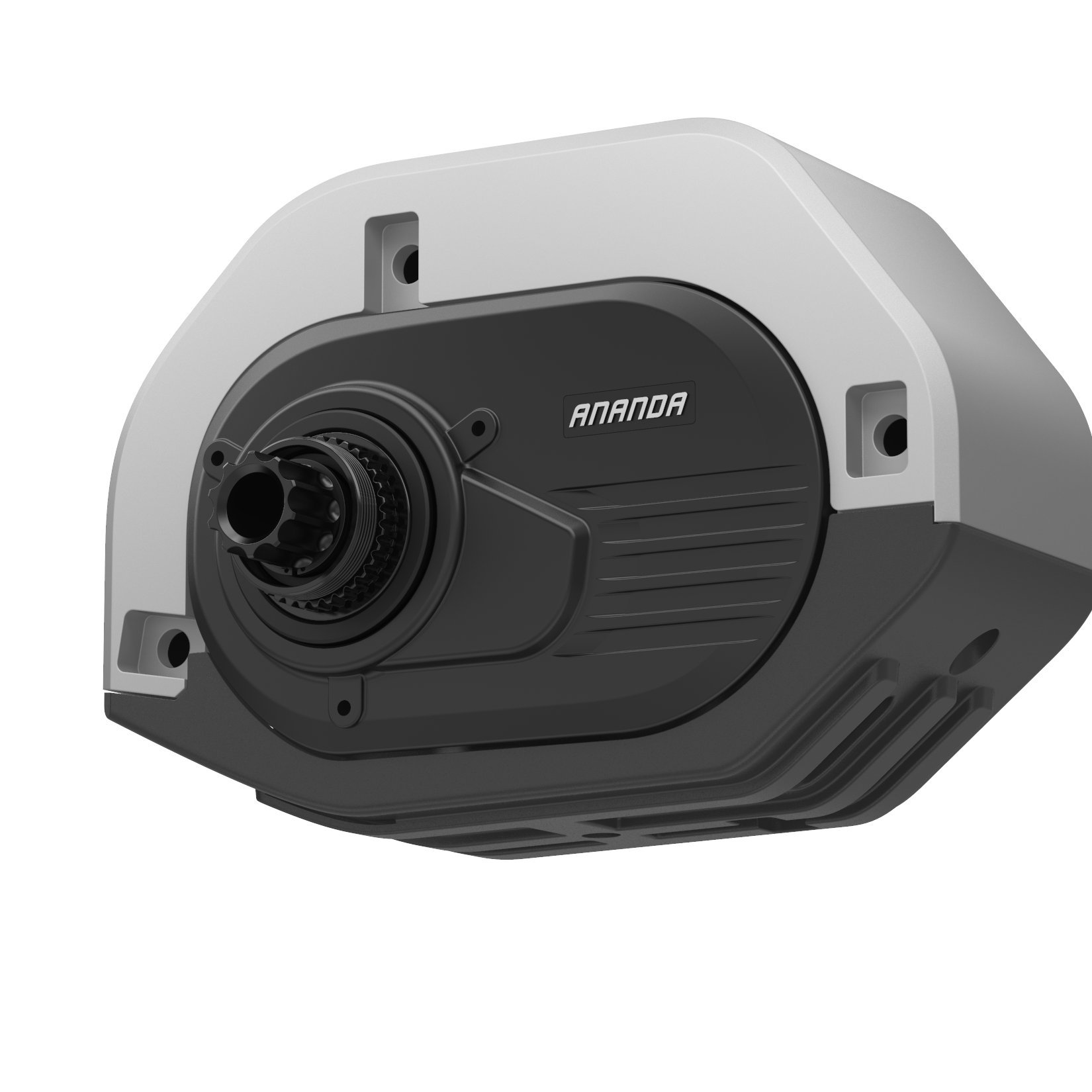

Ananda M5000 was designed as the ideal motor for touring cyclists and etrekking enthusiasts alike. This reliable and efficient motor offers smooth performance for a variety of riding scenarios. With its compact size and lightweight build of only 2.6 kg, it seamlessly integrates into your bike for effortless rides.

Parameter

Physical Features

Weight : 2.8 Kg

Construction : Gear Drive

Shaft Standard : ISIS

Performance & Technical

Rated Power : 250 W

RPM : 110

Max Torque : 75 Nm

Max efficiency : ≥80%

Key points

Small size and light weight

Super silent

Throttle option

Options

Available in 250W only ISIS axle  only

Learn More Inquiry Now

What makes it unique !

Reliability, efficiency, compact design, lightweight build, powerful performance, and silent operation, suitable for touring cyclists and etrekking enthusiasts

Reliable Support for Varied Adventures

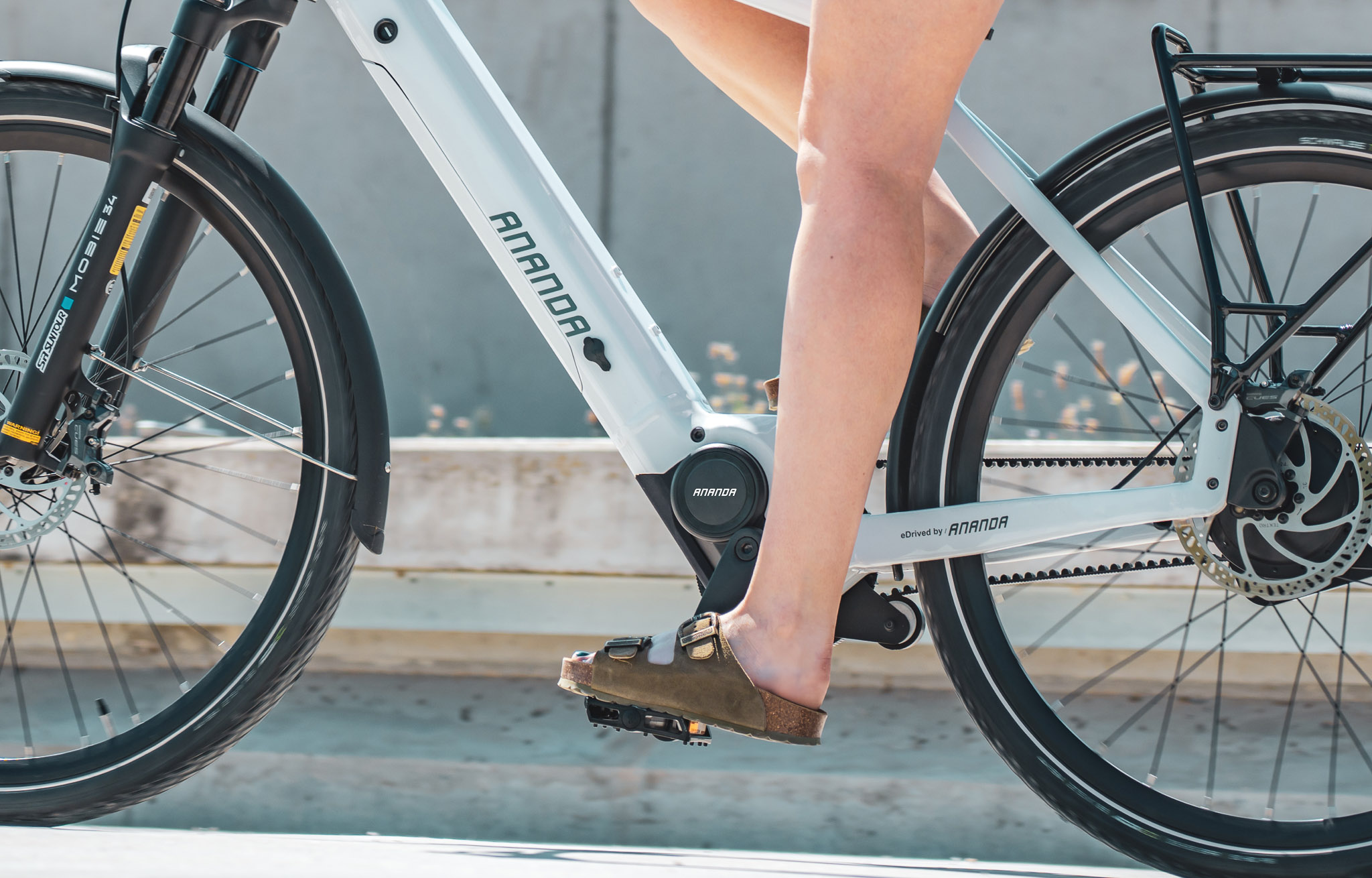

The Ananda M5000 provides reliable support for touring cyclists and etrekking enthusiasts, adapting smoothly to diverse riding needs. From long-distance tours to daily commutes, this motor offers consistent performance and dependable assistance.

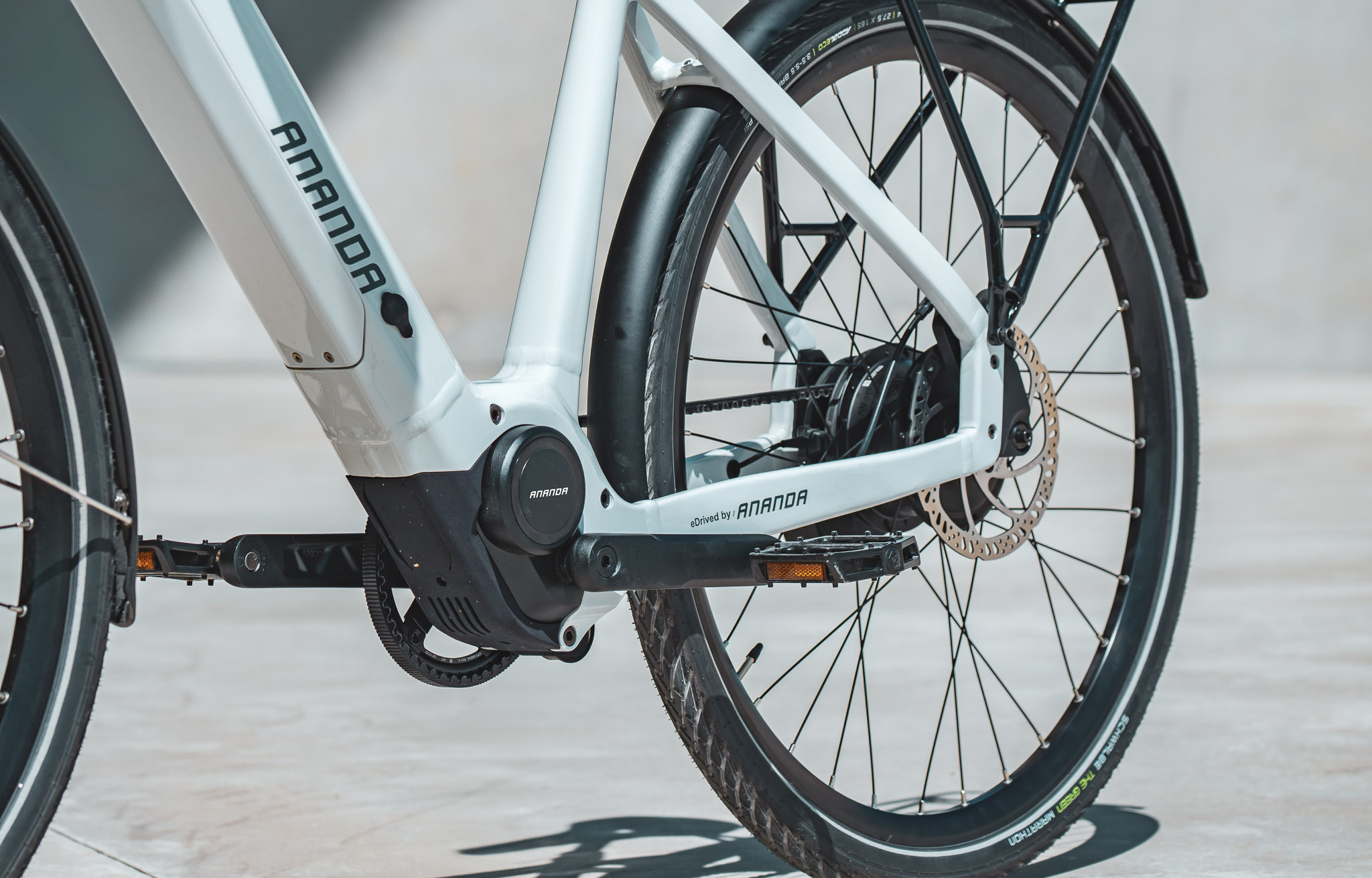

Compact Build, Enhanced Handling

Weighing a mere 2.8kg, the Ananda M5000 boasts a compact and lightweight design that enhances the handling and maneuverability of your bike. Enjoy agile rides and easy control, whether navigating trails or urban streets.

Powerful Performance with Silent Operation

Experience the 250W motor and maximum torque of 75Nm with the Ananda M5000. Despite its impressive power, this motor operates quietly, allowing for a serene and uninterrupted ride experience.

Parameter

Weight (Kg) 2.8
Construction Gear Drive
Shaft Standard ISIS
Color Black
Rated Voltage (DC) 36V
Rated Power (W) 250
RPM 110
Max Torque (Nm) 75
Max efficiency ≥80%
Coaster Brake /
e-Brake
Gear Sensor Option
Light Drive Capacity 6V3W/12V6W
Sensor Integrated Torque & Cadence Sensor
Certifications CE/EN15194/RoHS/REACHL
A: 182.3mm
B: 121.2mm
C: 48.7mm
D: 150mm

Comparison Motor

Weight (Kg)
Construction
Rated Voltage (DC)
Rated Power (W)
RPM
Max Torque (Nm)
Max efficiency
Sensor
Coaster Brake
Shaft Standard
Color
Operation Temperature (°C)
e-Brake
Gear Sensor
Light Drive Capacity
Certifications
Tests
Usage

M5000

eTrekking

2.8
Gear Drive
36V
250
110
75
≥80%
Integrated Torque & Cadence Sensor
/
ISIS
Black
Option
6V3W/12V6W
CE/EN15194/RoHS/REACHL

M100

eMTB / eCargo

3.5/3.9
Gear Drive
36V/48V/52V
250/350/500
110/120/135
110/120/130
≥80%
Integrated Torque & Cadence Sensor
/
JIS/ISIS
Black
Option
6V3W/12V6W/12V24W/24V24W
CE/EN15194/RoHS/REACH/UKCA/UL
