Products
Construction : Gear Drive
Weight : 2.3 Kg
Noise Grade : ≤50 dB
Rated Voltage : 36V DC
Rated Power : 250 W
Max Torque : 40 N.m
reliable and compact design
Construction | Gear Drive |
Weight (Kg) | 2.3 |
Color | Black / Sliver |
Noise Grade (dB) | ≤50 |
Operation Temperature (°C) | -20~55 |
Brake Type | Disc Brake / V Brake |
Cable Routing | Shaft side, Left/Right |
Spoke specification | 36H*13G |
Free wheel | / |
Rated Voltage (DC) | 36V |
Rated Power (W) | 250 |
Max Torque (N.m) | 40 |
Max efficiency | ≥80% |
Certifications | CE / RoHS / REACH |
Waterproof | IPX5 |
Cable Length (mm) | 250 |
A: 42mm |
B: 121mm |
C: 109mm |
D: M12x1.25mm |
E: 9.5mm |
F: 6.9mm |
O.L.D: 100 |
O.L.D |
Construction |
Rated Voltage (DC) |
Rated Power (W) |
Max Torque (N.m) |
Max efficiency |
Weight (Kg) |
Color |
Noise Grade (dB) |
Operation Temperature (°C) |
Brake Type |
Cable Routing |
Cable Length (mm) |
Spoke specification |
Free wheel |
Certifications |
Waterproof |

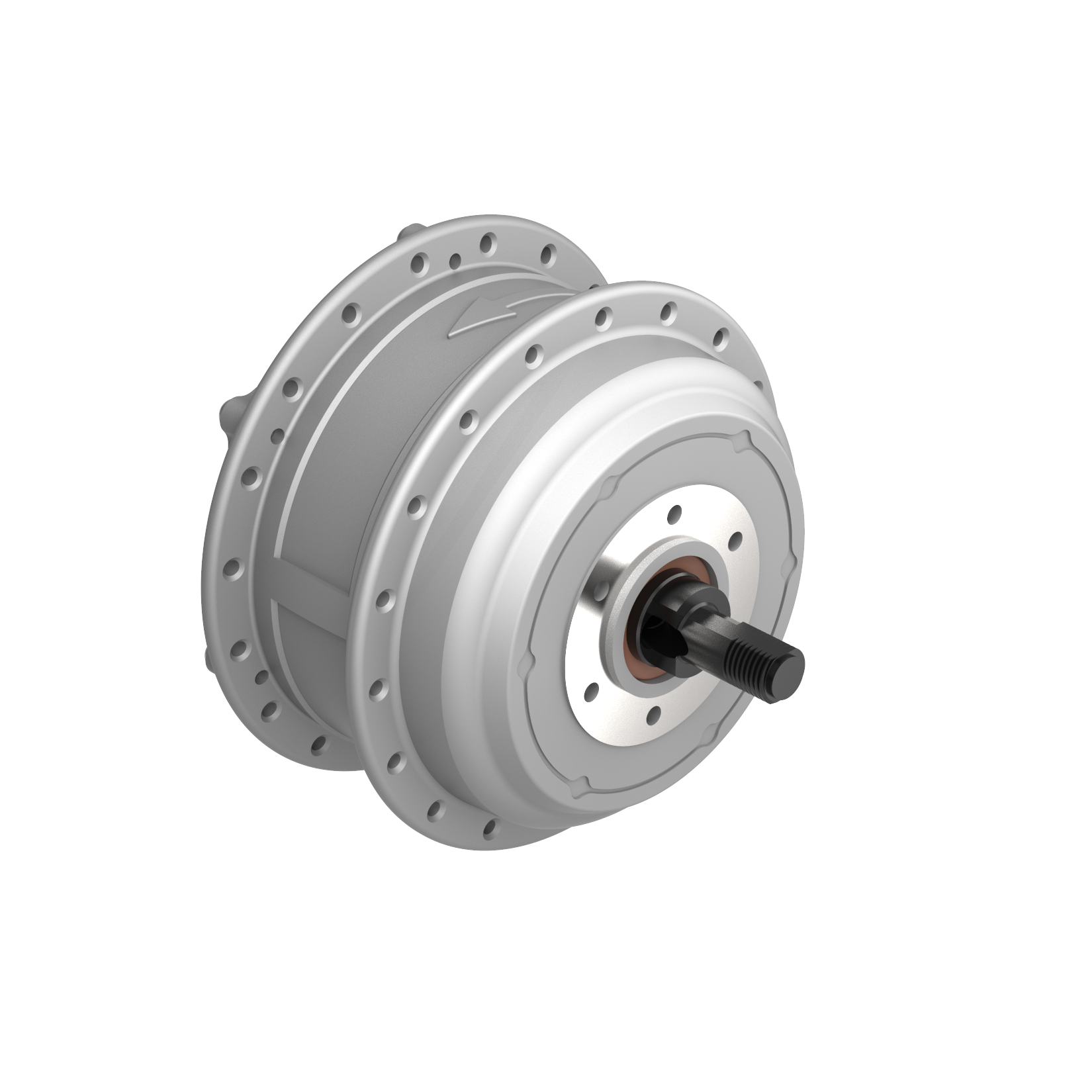

M129VD
eCity
100 |
Gear Drive |
36V |
250 |
40 |
≥80% |
2.3 |
Black / Sliver |
≤50 |
-20~55 |
Disc Brake / V Brake |
Shaft side, Left/Right |
250 |
36H*13G |
/ |
CE / RoHS / REACH |
IPX5 |
M108VD
eCity
100 |
Gear Drive |
36V |
250 |
30 |
≥80% |
2 |
Grey / Sliver |
≤50 |
-20~55 |
Disc Brake / V Brake |
Through shaft,Left |
250 |
36H*13G |
/ |
CE / RoSH / REACH |
IPX5 |
