Construction : Gear Drive
Weight : 5.9/6.2 Kg
Noise Grade : ≤60 dB
Rated Voltage : 48V/52V DC
Rated Power : 500/750 W
Max Torque : 65/85 N.m
| Construction | Gear Drive |
| Weight (Kg) | 5.9/6.2 |
| Color | Black |
| Noise Grade (dB) | ≤60 |
| Operation Temperature (°C) | -20~55 |
| Brake Type | Disc Brake |
| Cable Routing | Shaft Side, Left |
| Spoke specification | / |
| Free wheel | Screw-on 7S/Cassette 10S |
| Rated Voltage (DC) | 48V/52V |
| Rated Power (W) | 500/750 |
| Max Torque (N.m) | 65/85 |
| Max efficiency | ≥80% |
| Certifications | |
| Waterproof | IPX6 |
| Cable Length (mm) | 250 |

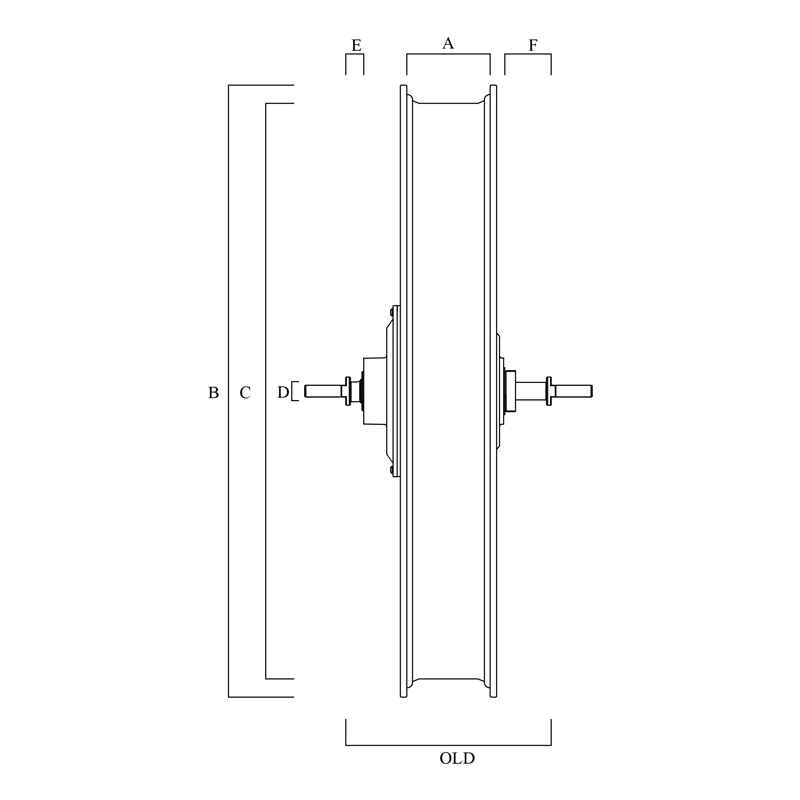

| A: 71mm |
| B: 521mm |
| C: 490mm |
| D: M12×1.25mm |
| E: 15.3mm |
| F: 39.5mm |
| O.L.D: 175/190mm |
| O.L.D |
| Construction |
| Rated Voltage (DC) |
| Rated Power (W) |
| Max Torque (N.m) |
| Max efficiency |
| Weight (Kg) |
| Color |
| Noise Grade (dB) |
| Operation Temperature (°C) |
| Brake Type |
| Cable Routing |
| Cable Length (mm) |
| Spoke specification |
| Free wheel |
| Certifications |
| Waterproof |

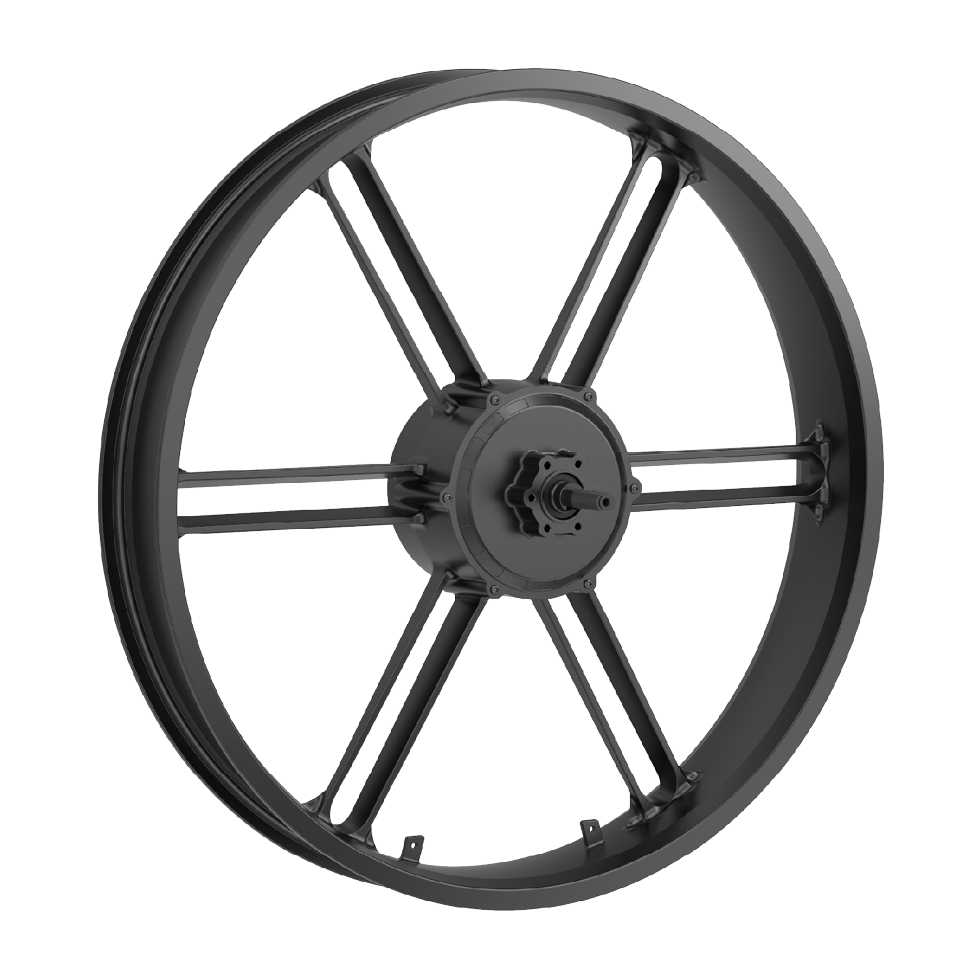

R530 Integrated wheel
eFat
| 175/190mm |
| Gear Drive |
| 48V/52V |
| 500/750 |
| 65/85 |
| ≥80% |
| 5.9/6.2 |
| Black |
| ≤60 |
| -20~55 |
| Disc Brake |
| Shaft Side, Left |
| 250 |
| / |
| Screw-on 7S/Cassette 10S |
| IPX6 |
M108VD
eCity
| 100 |
| Gear Drive |
| 36V |
| 250 |
| 30 |
| ≥80% |
| 2 |
| Grey / Sliver |
| ≤50 |
| -20~55 |
| Disc Brake / V Brake/ Roller Brake |
| Through Shaft,Left |
| 250 |
| 36H*13G |
| / |
| CE / RoSH / REACH |
| IPX5 |
